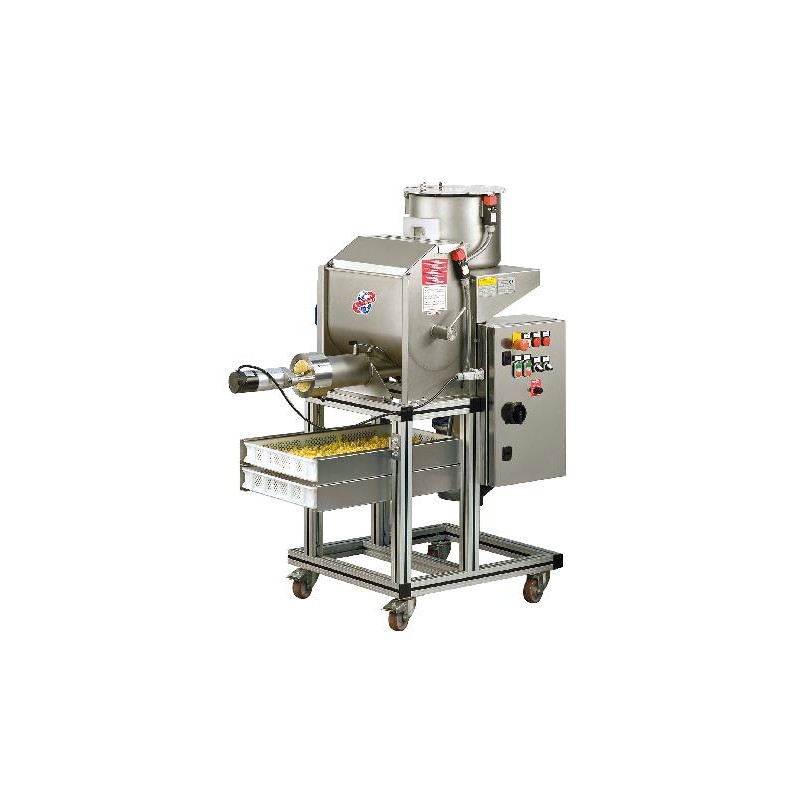

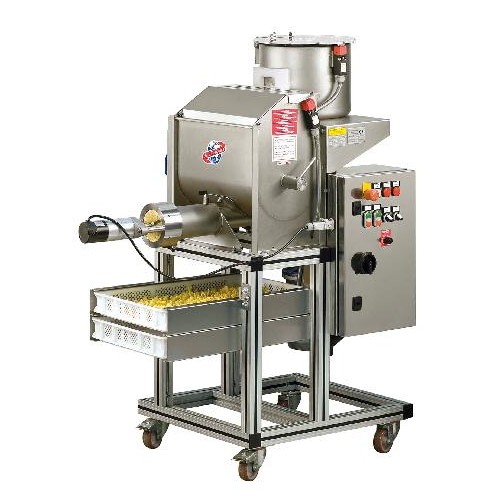

PASTA MACHINE SG30

000085

Double hopper pasta machine. With centrifugal mixing hopper, it allows homogeneous hydration of whole flours, leaving the dough stable during hydration with higher reduction of pasta oxidation (more strong yellow color). This patented system always allows extrusion of all the flours types and mixing (like corn, buckwheat, rice flour, etc.), in addition to white flour, durum semolina flour. It can produce a very smooth dough bread and pizza. Extrusion pressure calculated to maintain ingredients quality. SG30 is specifically suitable to produce special egg pasta. Bulkhead between upper and lower hopper allows dough passage in few seconds. Completely removable stainless steel pivots and shafts for easy and fast cleaning. Extrusion channel provided with cooling system fittings.

Technical data

Technical and structural characteristics

Vacuum Without vacuum
Operating methods discontinuous

Production

Products processed Nested and coiled pasta , Short-cut pasta , Long-cut pasta , Filled pasta
Production capacity Circa 30 kg/h a seconda dei formati di pasta

Size and Weight

Width (mm) 800
Length/depth (mm) 990
Height (mm) 1350
Weight (kg) 155

Electrical data

Power (kW) 2,2
Power supply (volt) 400/50/3Ph

Puff pastry

Pasta sheet width (mm) 240

Trafile

Diameter of die (mm) 109

Mixing tub

Capacity (l or kg) 5 kg di farina

Other

Destination Artisanal and small-scale industry
Price bracket Not declared
