Extruder P17

Reference: 000064

Request information

Description
Technical data

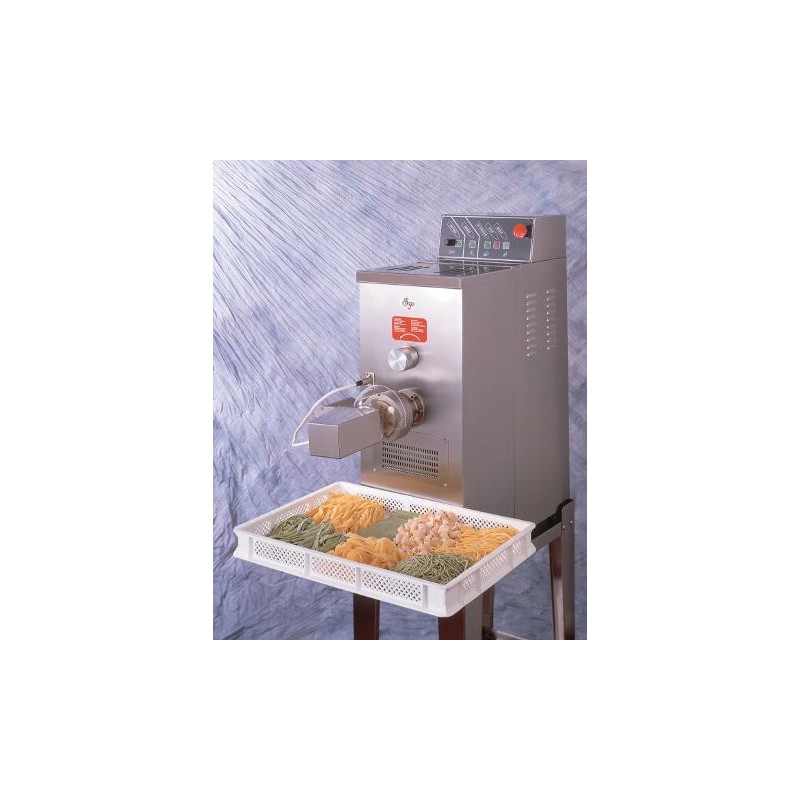

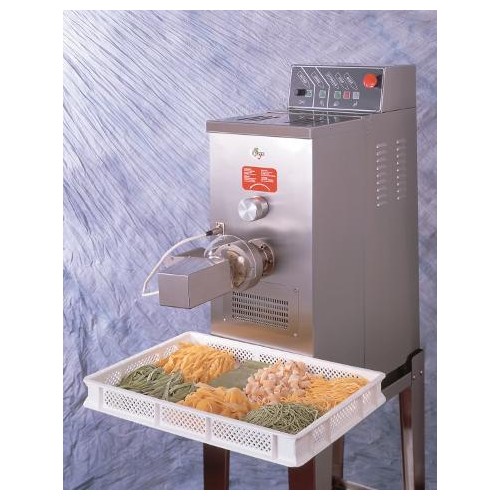

Extruder with automatic knife for short pasta. Fram, tank and body in stainless steel. Auger and mixer easily removable for easy cleaning.

Water-cooled extruding head available on request.

Technical data

Technical and structural characteristics
Vacuum	Without vacuum
Operating methods	discontinuous
Production
Products processed	Short-cut pasta , Long-cut pasta
Production capacity	Production in extrusion 25 kg/h
Size and Weight
Width (mm)	360
Length/depth (mm)	980
Height (mm)	1440
Weight (kg)	120
Electrical data
Power (kW)	0.8
Power supply (volt)	220 single phase or 400 triphase
Trafile
Diameter of die (mm)	94
Mixing tub
Capacity (l or kg)	7
Other
Destination	Artisanal and small-scale industry
Price bracket	Not declared
