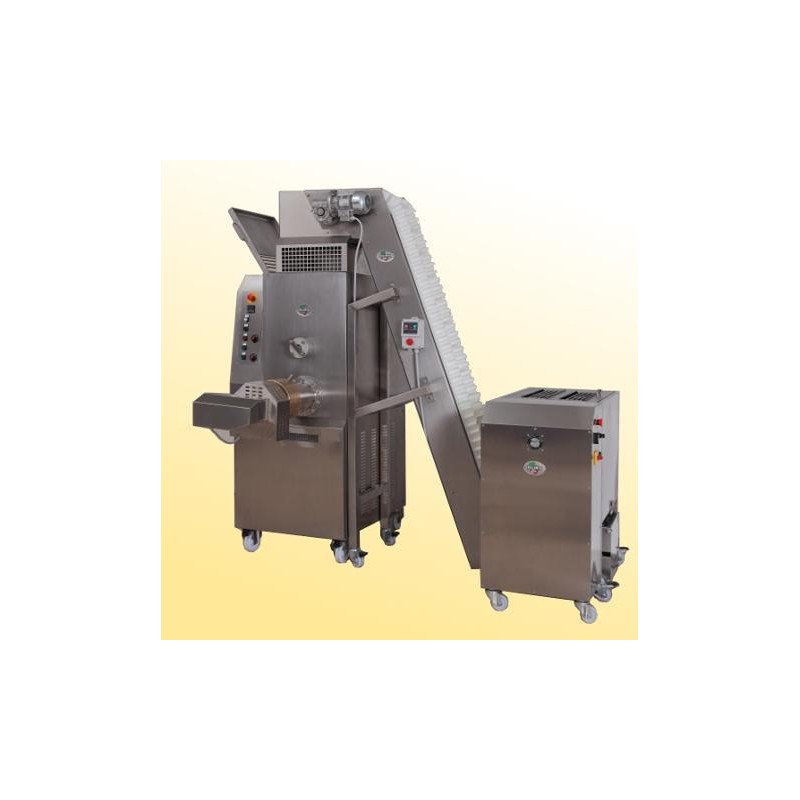

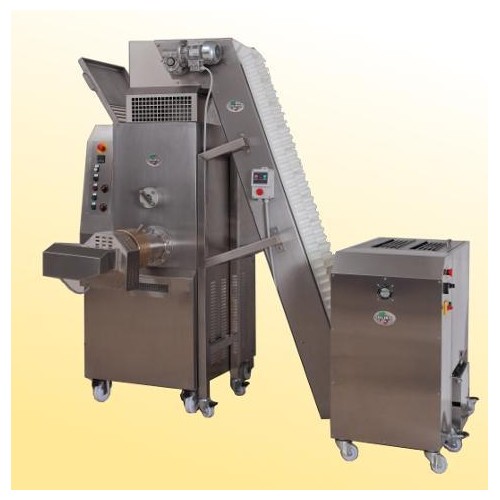

Extruder P170DV

Extruder P170DV

000042

 Request information

Extruder with water-cooled extruding head with closed circuit and automatic knife for short pasta. Frame, tank and stainless steel body mad of AISI 304 stainless steel. Auger and mixer easily removable for easy cleaning. A separate mixing tank ensures continuos production for continuous lines. With a special die it is possible to produce stuffed cannelloni.
La pressa è dotata di una vasca impastatrice ausiliaria per produzione continua alimentata da un nastro trasportatore a navicelle.
Con apposite trafila è possibile produrre sfoglia o cannelloni ripieni.

Technical data

Technical and structural characteristics
Operating methods Continuous

Production
Products processed Cannelloni, Short-cut pasta , Long-cut pasta
Production capacity Pasta production in extrusion 170 kg/h

Size and Weight
Width (mm) 3000
Length/depth (mm) 1700
Height (mm) 2250
Weight (kg) 640

Electrical data
Power (kW) 15.75

Puff pastry
Pasta sheet width (mm) 400 trifase

Trafile
Diameter of die (mm) 198

Mixing tub
Capacity (l or kg) 70 + 100

Other
Destination Medium-scale industry
Price bracket Not declared
