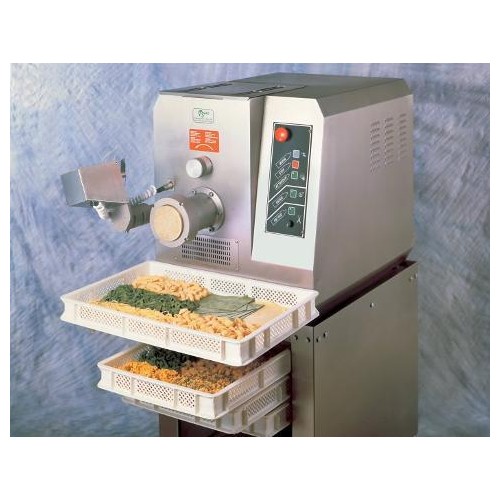

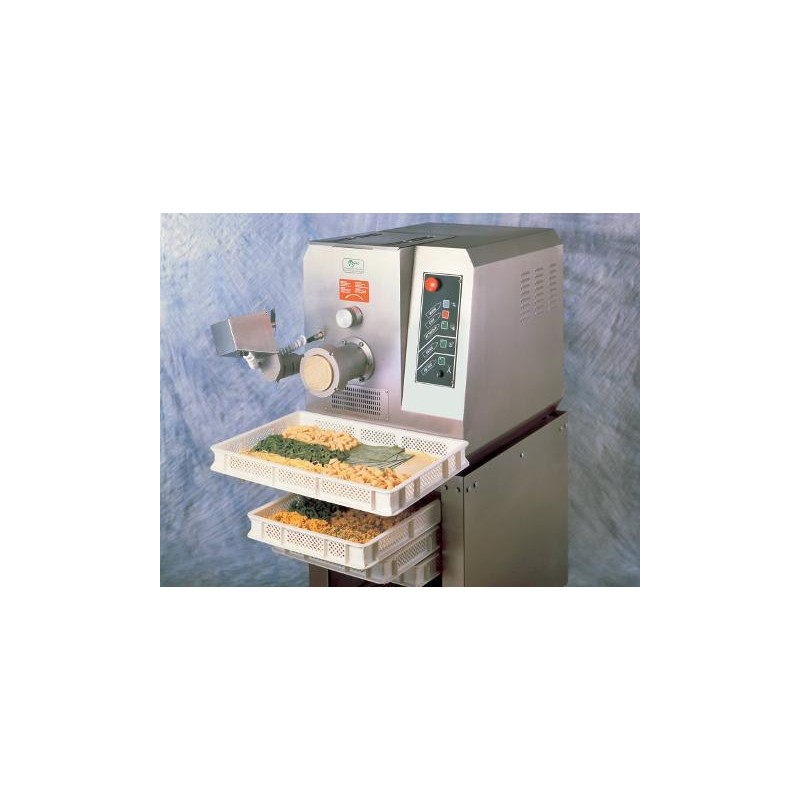

Extruder P35A

Reference: 000041

Request information

Description
Technical data

Extruder with water-cooled extruding head with closed circuit and automatic knife for short pasta. Frame, tank and stainless steel body mad of AISI 304 stainless steel.

Auger and mixer easily removable for easy cleaning.

With a special die it is possible to produce stuffed cannelloni.

Technical data

Technical and structural characteristics
Operating methods	discontinuous
Production
Products processed	Cannelloni, Short-cut pasta , Long-cut pasta
Production capacity	Pasta production in extrusion 50 kg/h
Size and Weight
Width (mm)	550
Length/depth (mm)	1100
Height (mm)	1320
Weight (kg)	150
Electrical data
Power (kW)	1.7
Power supply (volt)	220 single phase or 400 triphase
Trafile
Diameter of die (mm)	109
Mixing tub
Capacity (l or kg)	10
Other
Destination	Artisanal and small-scale industry
Price bracket	Not declared
