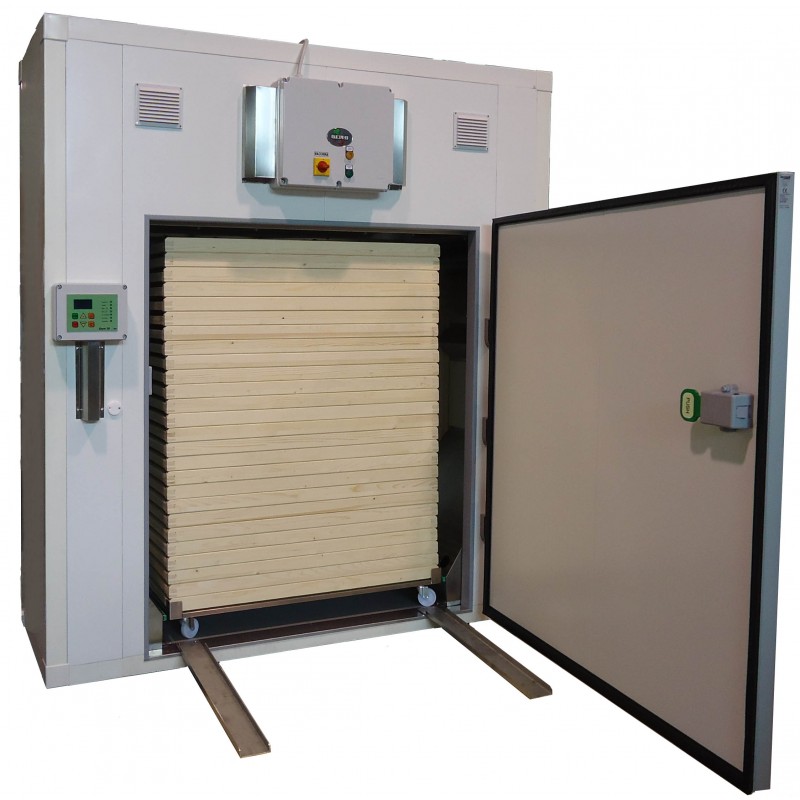

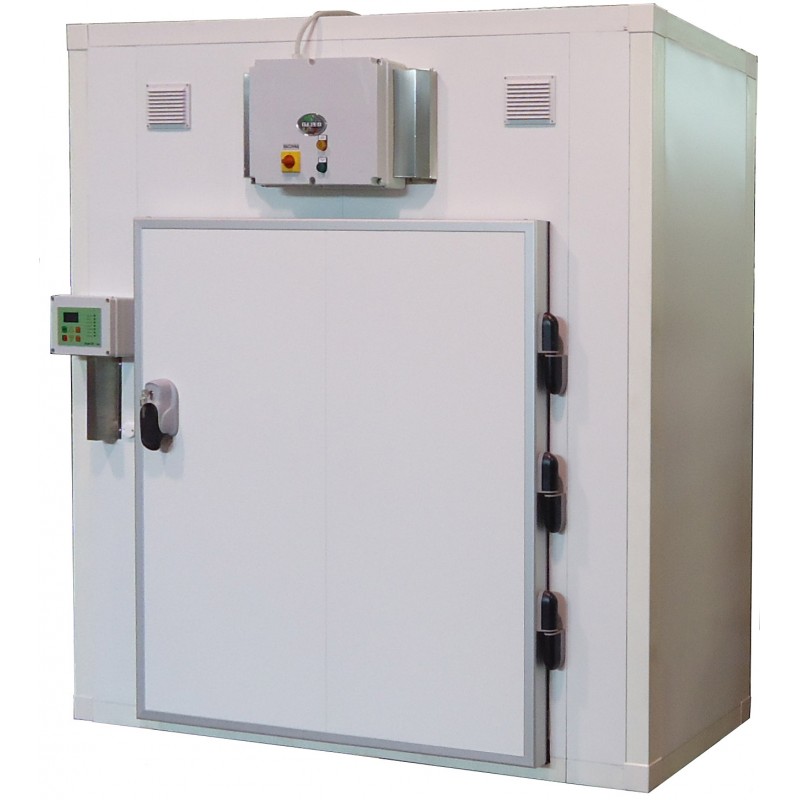

Dryer EC150
000426
Dryer specially designed for drying pasta.
The new Italgi technology to optimize the drying cycle allows personalized management of the drying process according to different pasta shapes.
Made of high thickness insulating panels with high density injected polyurethane foam, including floor, to ensure optimum insulation and soundproofing. Heating air through electrical resistances, fans with flow rectifiers, moist air extractors.
Temperature and humidity of the cycle are controlled by a specially designed electronic card, with the possibility of storing the drying programs.
Technical data
Technical and structural characteristics |
|
| Main construction and functional characteristics | Cabinet/cell |
| Equipment and technical and constructive features | Arrangement on trays |
| Operating methods | discontinuous |
Production |
|
| Products processed | Regional shapes (trofie, orecchiette, cavatelli and similar) , Lasagna, Nested and coiled pasta , Short-cut pasta |
| Production capacity | Up to 600 kg/cycle |
Size and Weight |
|
| Width (mm) | 2200 |
| Length/depth (mm) | 4300 |
| Height (mm) | 2400 |
| Weight (kg) | 1620 |
Electrical data |
|
| Power (kW) | 26 |
| Power supply (volt) | 400 |
Thermal data |
|
| Thermal power (kcal) | N/A |
| Operating temperature (°C) | 40-50 |
| Operating pressure (bar) | N/A |
Looms |
|
| No. of trays | 156 |
| Size of trays (BxD, mm) | 1200x6000 |
| Height of trays (mm) | 55 |
Carts |
|
| n. carrelli | 6 |
Other |
|
| Destination | Artisanal and small-scale industry, Medium-scale industry |
| Price bracket | Not declared |
